Devtools Interface Guide

QTap DevTools provides a browser-based interface for inspecting HTTP/S traffic in real-time. The interface is organized into three tabs, each providing a different level of visibility into your system's network activity.

Access DevTools at http://localhost:10001/devtools after enabling with --enable-dev-tools or ENABLE_DEV_TOOLS=true.

---

Global Controls

The toolbar at the top of every tab includes three controls:

Control	Icon	Function
Pause	⏸	Stops the real-time stream. New events are buffered but not displayed until you resume. Useful when you've captured the event you're looking for and want to inspect it without new entries pushing it down the list.
Clear Data	🚫	Wipes the current buffer and starts fresh. Helpful when you want a clean slate before reproducing a specific issue.
Filter	🔽	Opens the filter builder. Lets you narrow down to specific traffic patterns.

---

Filter System

The filter UI uses a structured query builder with three components:

Key → Operator → Value

Select a key from the dropdown, choose an operator, and type a value to filter the current view. Multiple filters can be combined to narrow results further.

Available Filter Keys by Tab

Requests Tab

Key	Description	Example
method	HTTP method	GET, POST, PUT, DELETE
status	HTTP status code	200, 401, 404, 500
endpoint	Target domain	api.github.com
path	URL path	/v1/users
direction	Traffic direction	egress, ingress
process	Binary that made the request	/usr/local/bin/ruby

Connections Tab

Key	Description	Example
direction	Traffic direction	egress, ingress
source	Source IP address	192.168.3.218
destination	Destination IP address	140.82.112.5
status	Connection state	OPEN, CLOSED
socketProtocol	Transport protocol	tcp
l7Protocol	Application protocol	http1
process	Binary that opened the connection	/usr/local/bin/ruby
user	System user	root, www-data

---

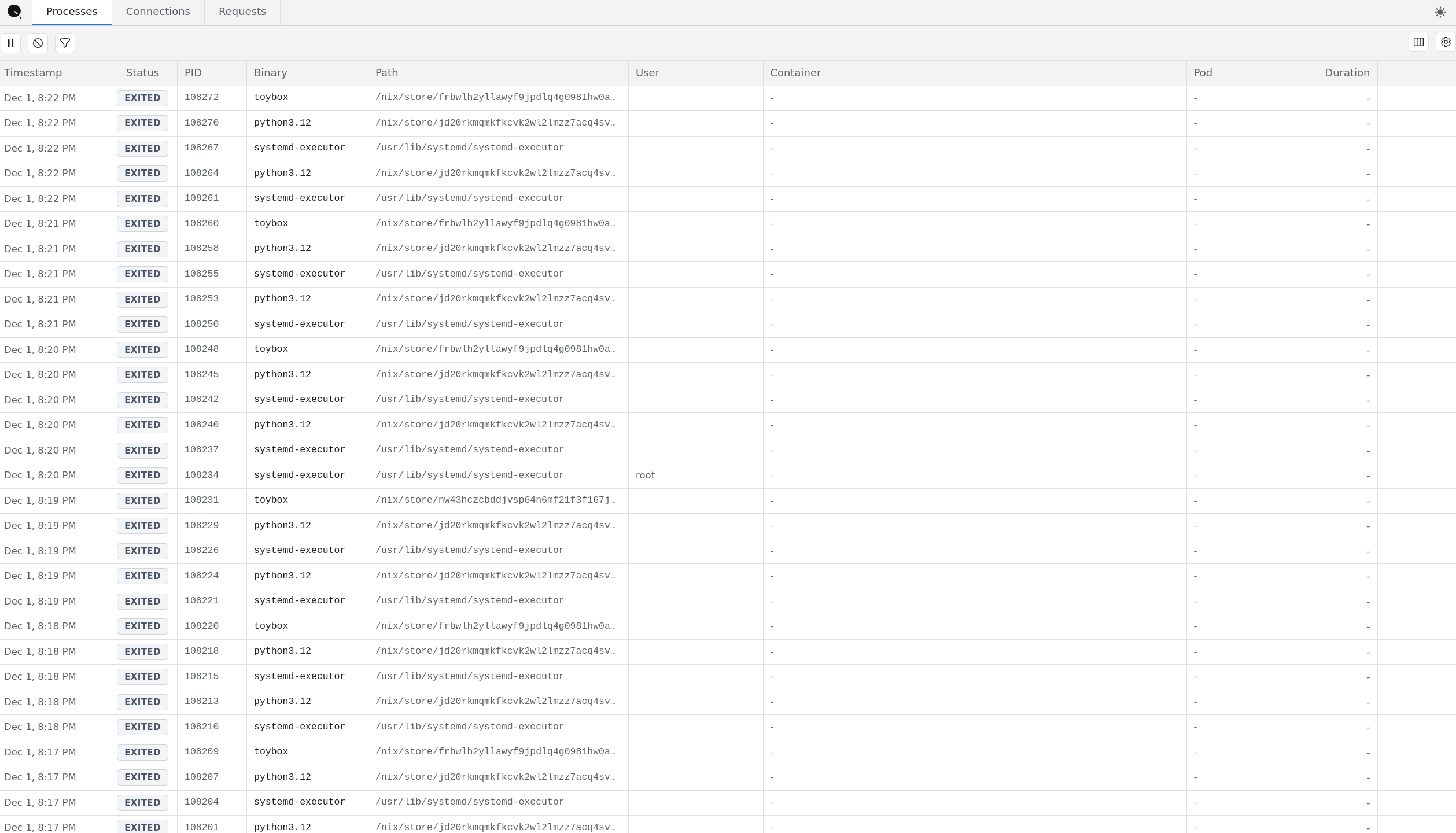

Processes Tab

A real-time inventory of every process on the host.

Columns

Column	Description
Timestamp	When the process was observed
Status	RUNNING (green) or EXITED (gray)
PID	Process ID
Binary	Executable name (python3.12, docker, ruby, etc.)
Path	Full filesystem path to the binary
User	Which system user is running the process
Container	Container name, if applicable
Pod	Kubernetes pod name, if applicable
Duration	How long the process has been running

Detail Panel

Click any process row to open the detail panel showing:

• Process Info: Binary name, full path, hostname, PID

• User Info: Username and UID

Use Cases

• See what's actually running on a host, especially in containerized environments

• Identify unexpected processes

• Correlate processes with network activity in other tabs

---

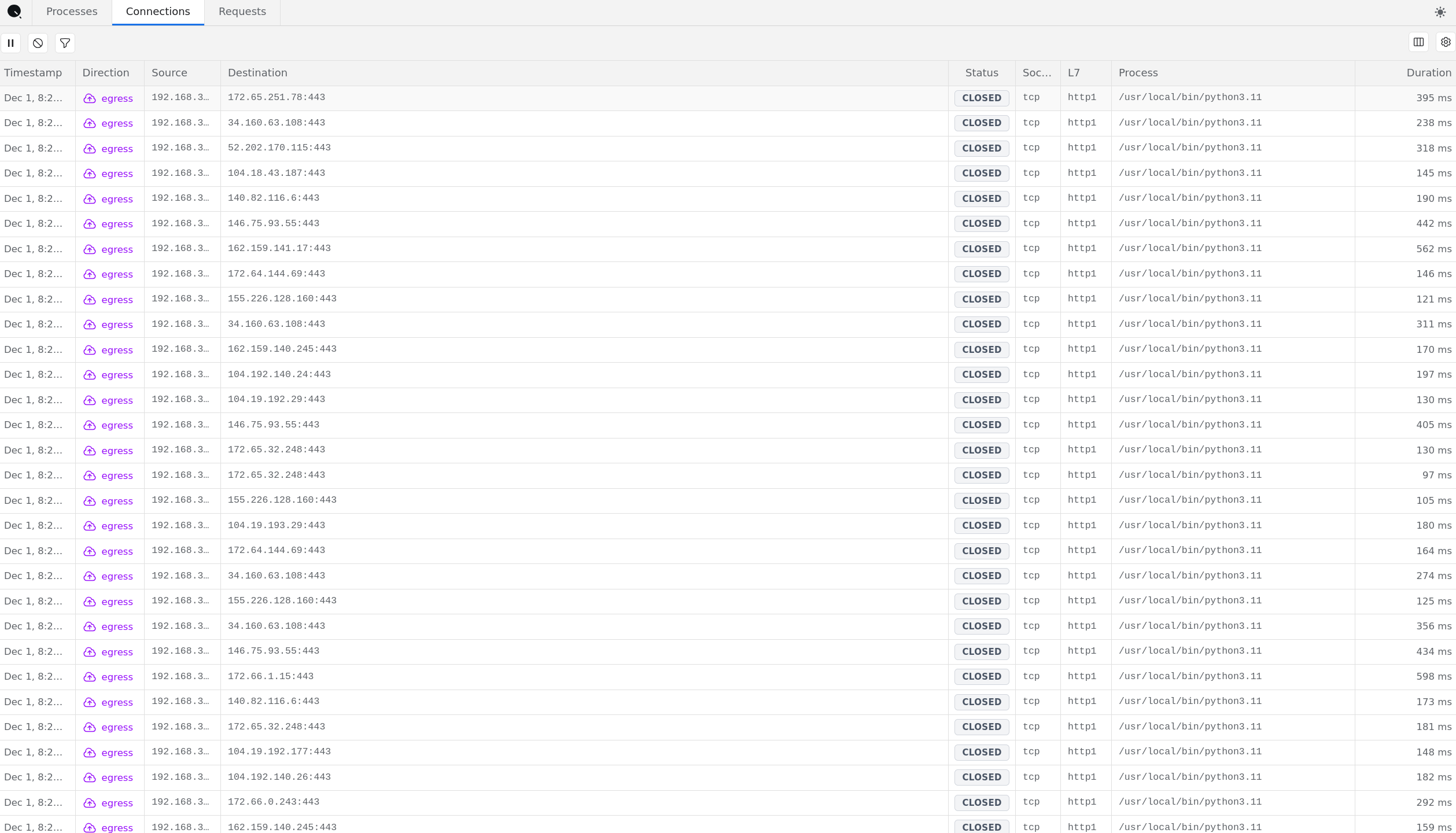

Connections Tab

Shows every network connection with process attribution.

Columns

Column	Description
Timestamp	When the connection was observed
Direction	Egress (outbound) or ingress (inbound)
Source	Local IP:port
Destination	Remote IP:port
Status	OPEN (green) or CLOSED (gray)
Socket	Transport protocol (tcp)
L7	Detected application protocol (http1, http2)
Process	Binary that opened the connection
Duration	Connection lifetime

Detail Panel

Click any connection to see:

• Connection Info: Unique connection ID, resolved endpoint hostname (e.g., api.mailgun.net), creation timestamp

• Source: IP address, hostname, executable path

• Destination: Remote IP address

• System: Hostname, agent type, agent instance ID

• TLS Detection: Which TLS library was detected (openssl, gotls, nodetls, javassl)

• Tags: Auto-generated metadata including binary, environment, host, protocol

Use Cases

• See which external services your application connects to

• Identify unexpected outbound connections

• Debug connection timeouts or failures

• Understand connection duration patterns

---

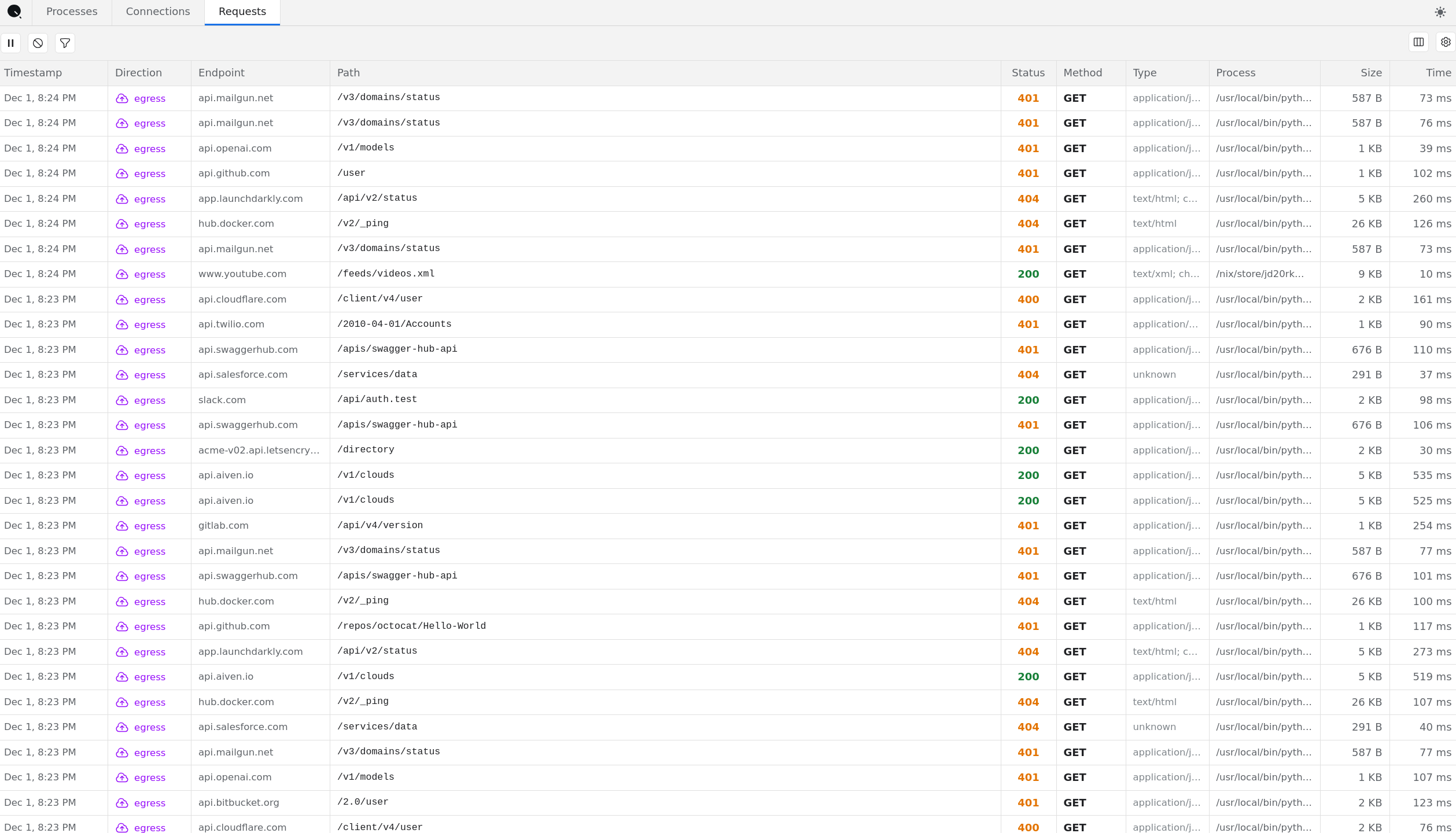

Requests Tab

Individual HTTP transactions with full request and response details. This is the closest equivalent to Chrome DevTools' Network tab.

Columns

Column	Description
Timestamp	When the request was made
Direction	Egress or ingress
Endpoint	Target domain (api.github.com, api.stripe.com)
Path	URL path (/v1/customers, /rate_limit)
Status	HTTP status code, color-coded (green=2xx, yellow=3xx, red=4xx/5xx)
Method	HTTP method (GET, POST, PUT, DELETE)
Type	Response content type (application/json, text/html)
Process	Binary that made the request
Size	Response body size
Time	Request duration in milliseconds

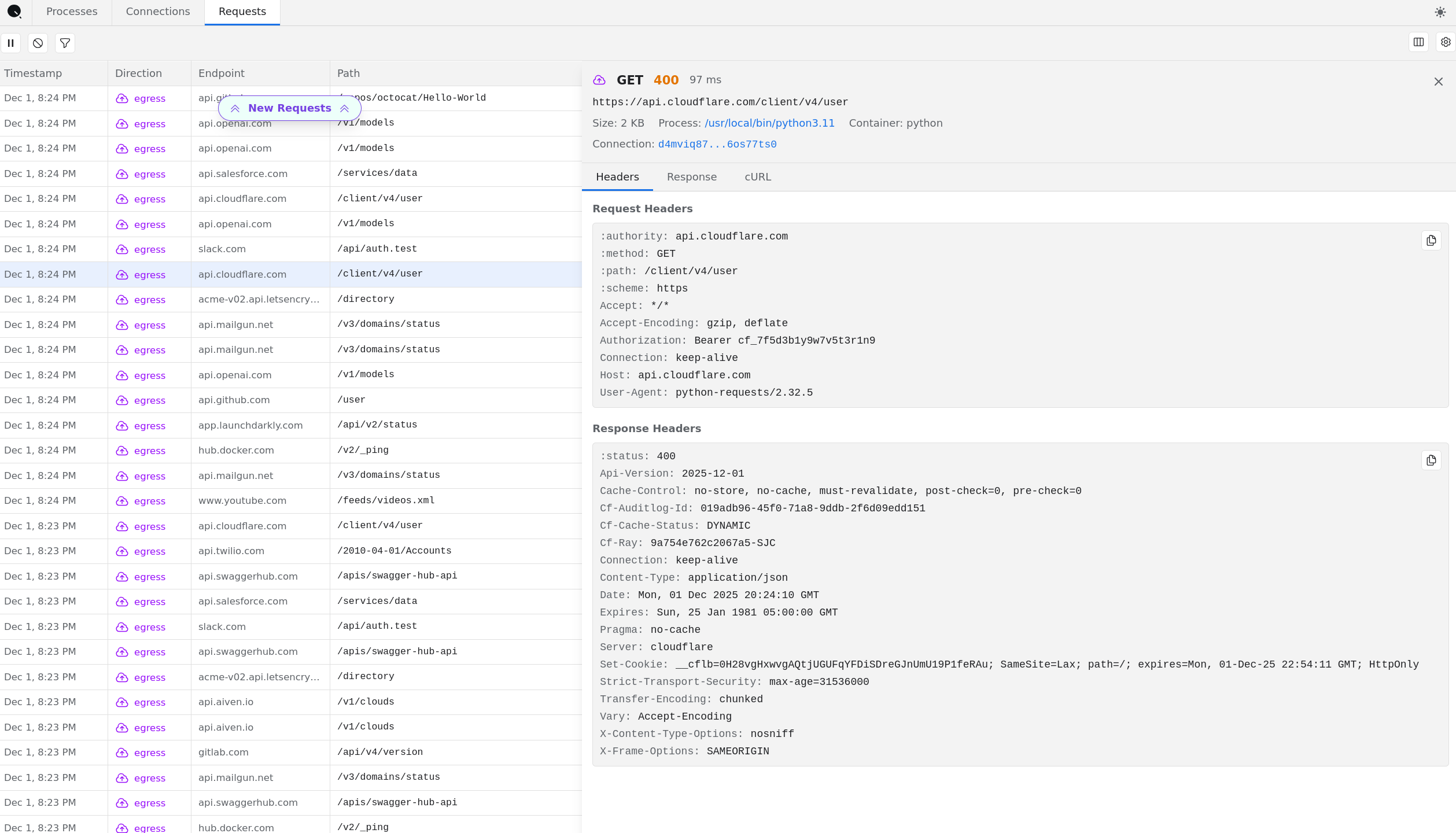

Detail Panel

Click any request to see the full transaction details:

Header Bar

• Method and status code with timing

• Full URL

• Size, process path, and container name

• Link to the underlying connection

Tabs

Tab	Contents
Headers	Complete request headers (including Authorization, cookies, custom headers) and response headers
Response	Full response body
cURL	Copy-pasteable cURL command to reproduce the request

Use Cases

• Debug authentication failures by seeing the exact Authorization header sent

• Inspect API error responses that your application logs don't capture

• Compare request structure against API documentation

• Export requests as cURL commands for testing

---

Tips

Debugging a Specific Issue

1. Click Clear Data to start with an empty buffer

2. Set up filters to isolate the traffic you care about (e.g., endpoint = api.stripe.com)

3. Reproduce the issue in your application

4. Click Pause once you see the relevant request

5. Click into the request to inspect headers and response

Finding Unexpected Traffic

1. Filter by process to isolate a specific service

2. Look at the Connections tab to see all destinations

3. Check for connections to unexpected endpoints

Investigating Slow Requests

1. Sort by the Time column to find slow requests

2. Check the detail panel for timing breakdown

3. Look at connection duration in the Connections tab to distinguish network latency from processing time

---

Data Retention

DevTools uses a ring buffer in your browser's memory. Data is ephemeral and cleared on page refresh. For permanent storage, configure S3-compatible object storage in your Qtap configuration.
